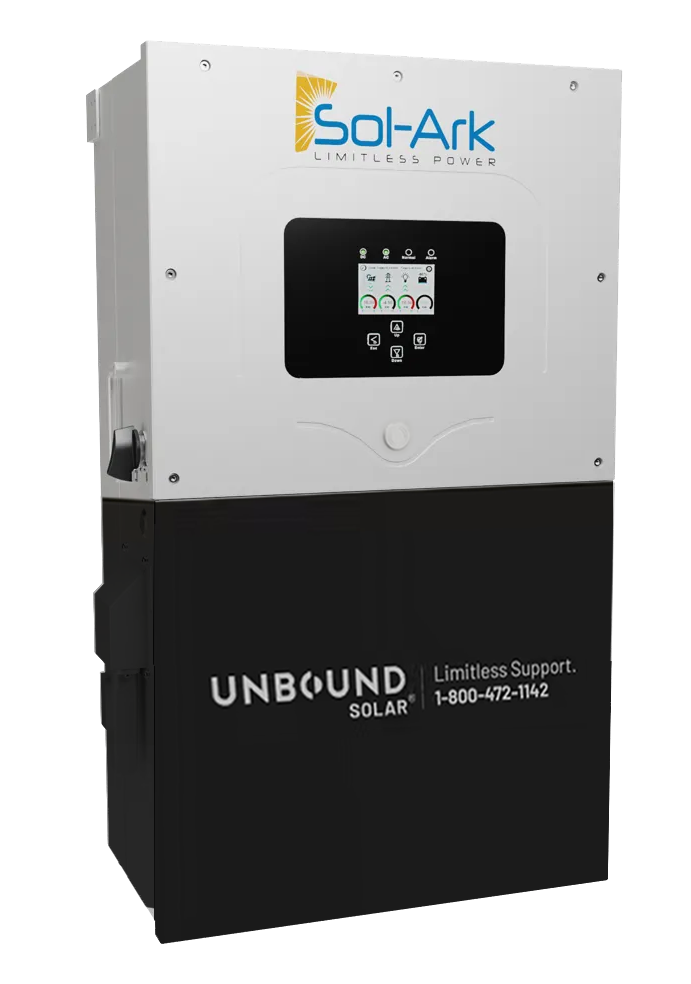

Unbound Sol-Ark All-In-One Solar Generator System
The Unbound inverter, powered by Sol-Ark, offers next generation efficiency in a format that is easy to install and use. The Unbound Sol-Ark 15K Solar inverter simultaneously manages power from solar panels, battery, grid, loads and generator, with 15kW of continuous output to grid and 12kW continuous output power to supported loads. This system is easy to monitor & control from anywhere, with a smartphone app, or by using the built-in color touchscreen.
Limitless Features
The Unbound Sol-Ark inverter can be configured in a number of different ways, for nearly every application:
-
Grid-tie, hybrid, off-grid, battery backup
-
19.5kW Max PV DC Capacity
-
15kW Max PV Power delivered to Battery & AC Outputs
-
12kW continuous power on batteries
-
Parallel stacking (1-12 inverters)
-
Utility grid intelligent: grid sell, meter zero(Limit to Home), time of use, smart load, peak shaving
-
Up to 30,000VA Surge AC Power (100ms)
-
AC and DC coupling
-
Split phase 120/240VAC, and three phase 120/208VAC capable
-
Built-in color touchscreen
-
Remote monitoring
-
Built-in 200a bypass, ideal for whole-home or partial-home backup.
Additional Features
- Three Built-In 500V Charge Controllers
- 1 – 6 PV Strings
- 19.2kW Generator input
- Battery Disconnect
- Dual 48V Battery Input
- Auto-Generator Start (2-wire)
- Built in Arc-Fault and Ground-Fault detection
- Current Sensors Included
- Closed-Loop Battery Communication
- Integrated PV Disconnect switch
- Wiring Knockouts an & WiFi
- Approved for UL 1741 SB, Third Edition
- CEC listed for California
